Continuous Decatizing Machine
WPF-LXZN
Continuous Intelligent Energy-Saving Decatizing Machine · Equipped with QL’s proprietary Decatizing Uniformity Technology

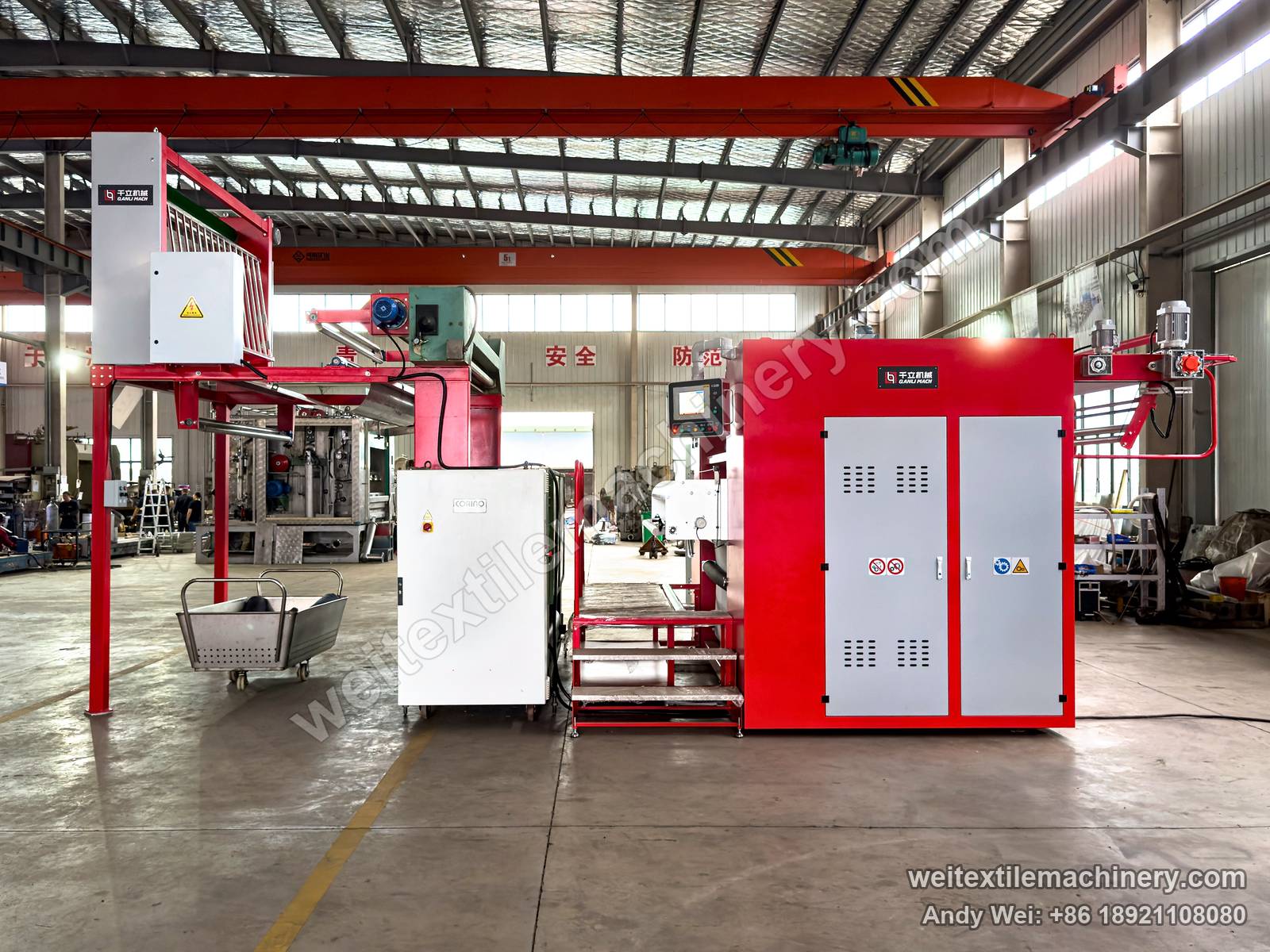

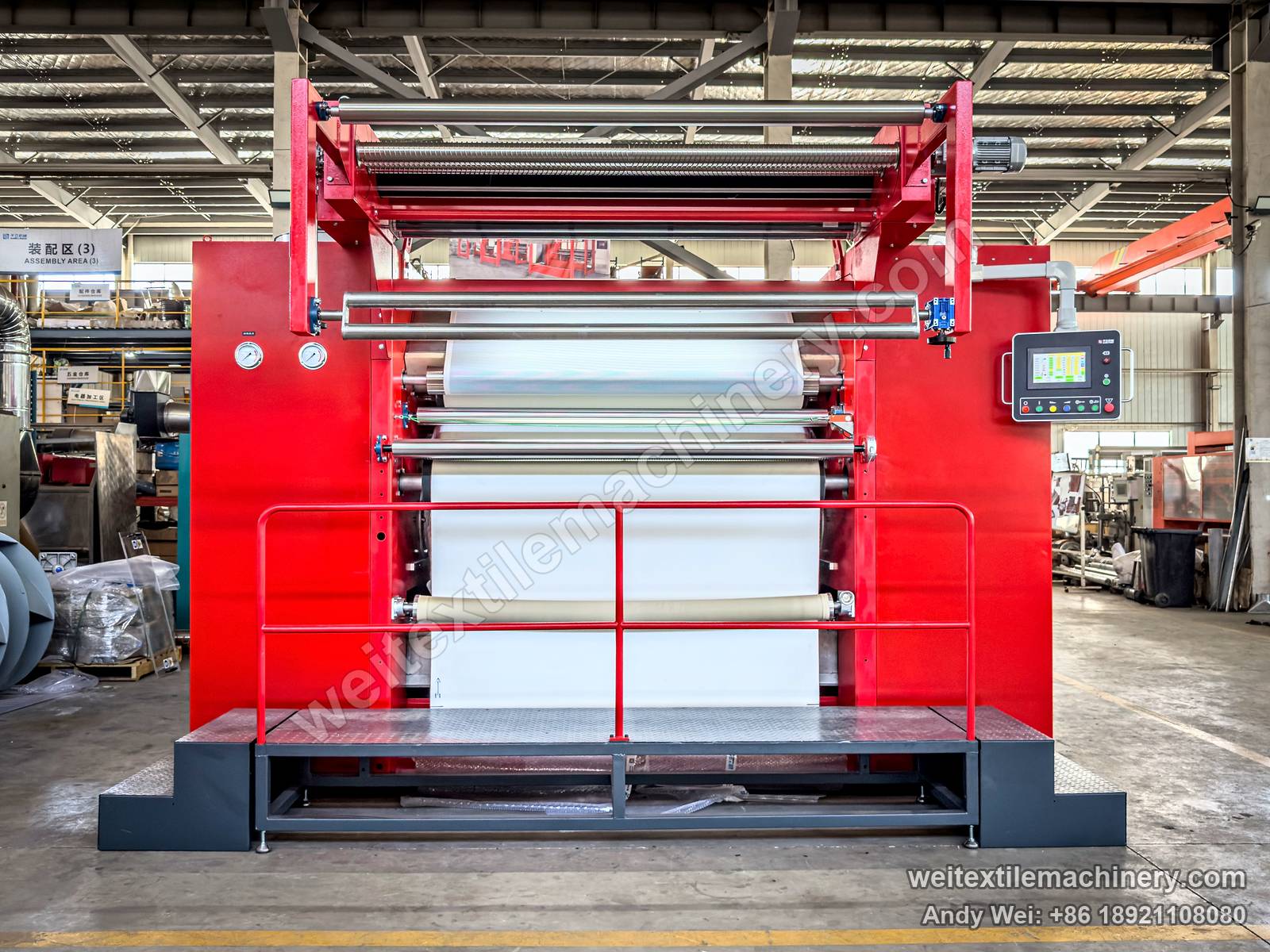

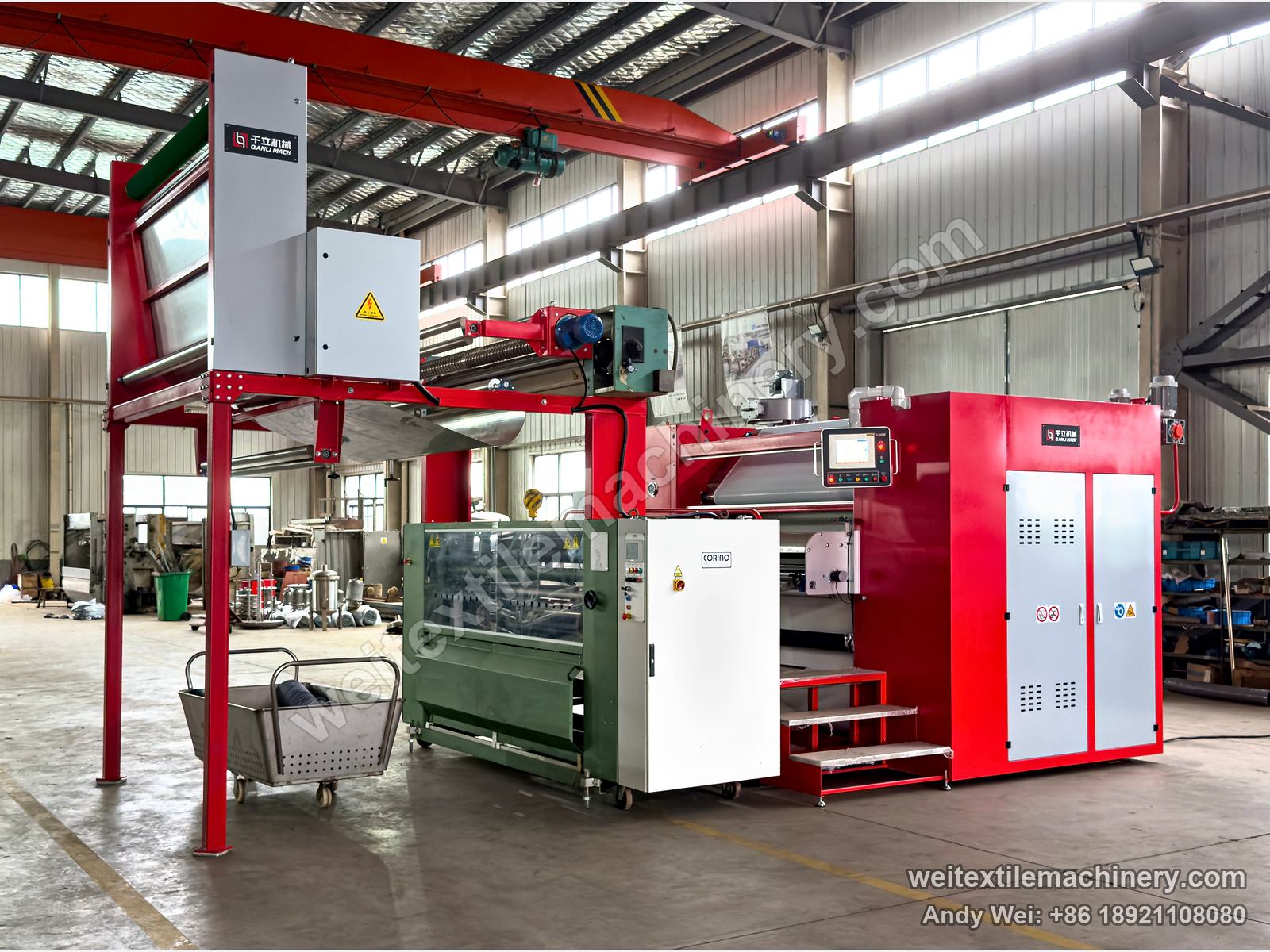

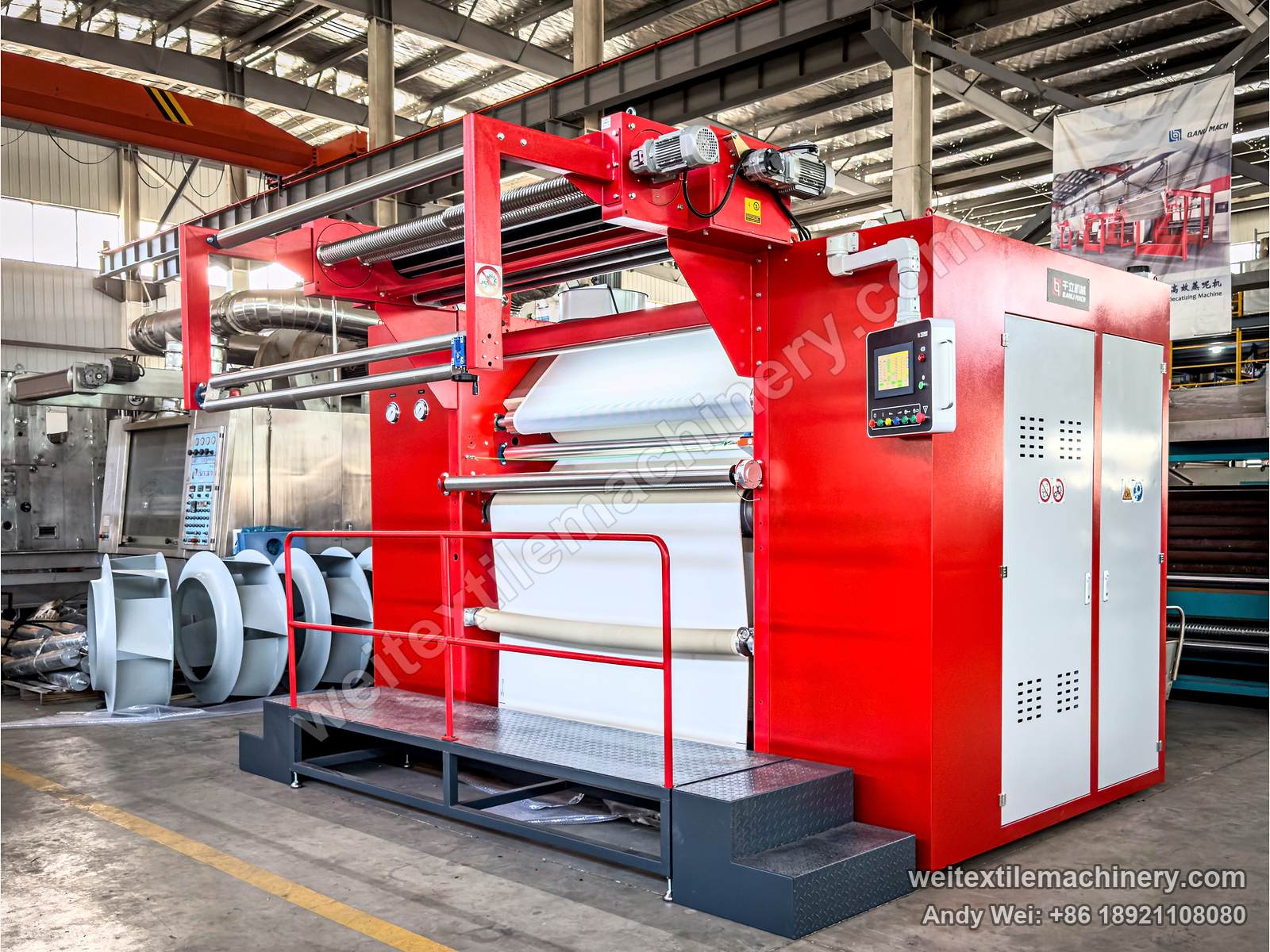

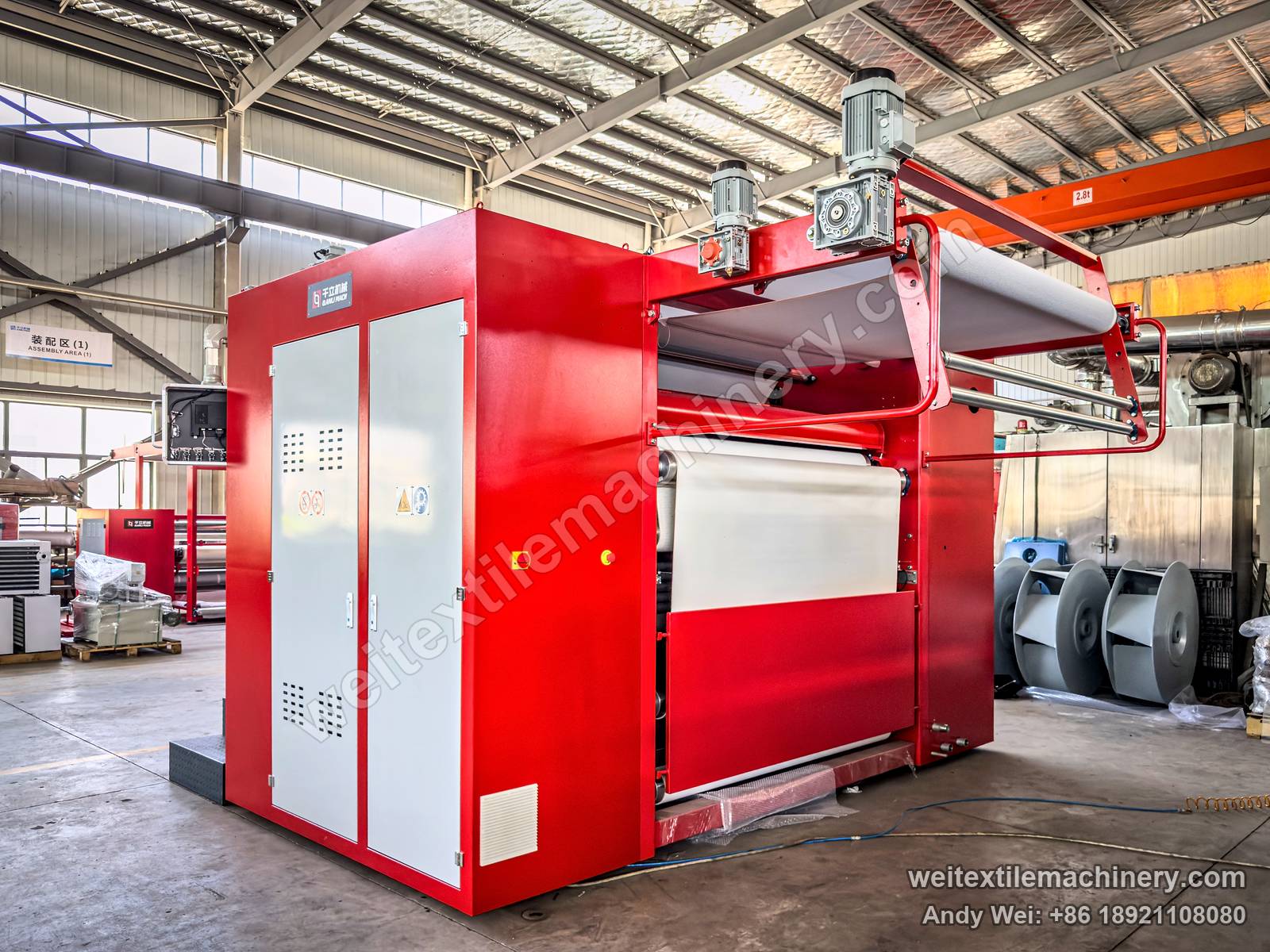

The machine, up close
Key advantages
- Roller-and-felt continuous fabric path — uninterrupted in-and-out fabric flow, suited to high-takt continuous production; capable of handling fringed scarves, shawls, and other categories that batch (kier) decatizing cannot process
- QL proprietary Decatizing Uniformity Technology — eliminates left-centre-right shading, eliminates head-to-tail piece variation, raises steam utilisation
- Proportional-valve steam supply — constant pressure, stable flow, automatic consumption metering
- Enlarged steam-rise chamber — extended steam dwell time, substantially enhanced fabric setting effect
Fabric results (before / after)
Worsted
Threading diagrams
Worsted
QL Decatizing Uniformity Technology
- Eliminates left-centre-right shading — uniform decatizing depth across the full fabric width
- Eliminates head-to-tail piece variation — batch-to-batch consistency in bulk production
- Significantly raises steam utilisation — reduced steam consumption per linear metre

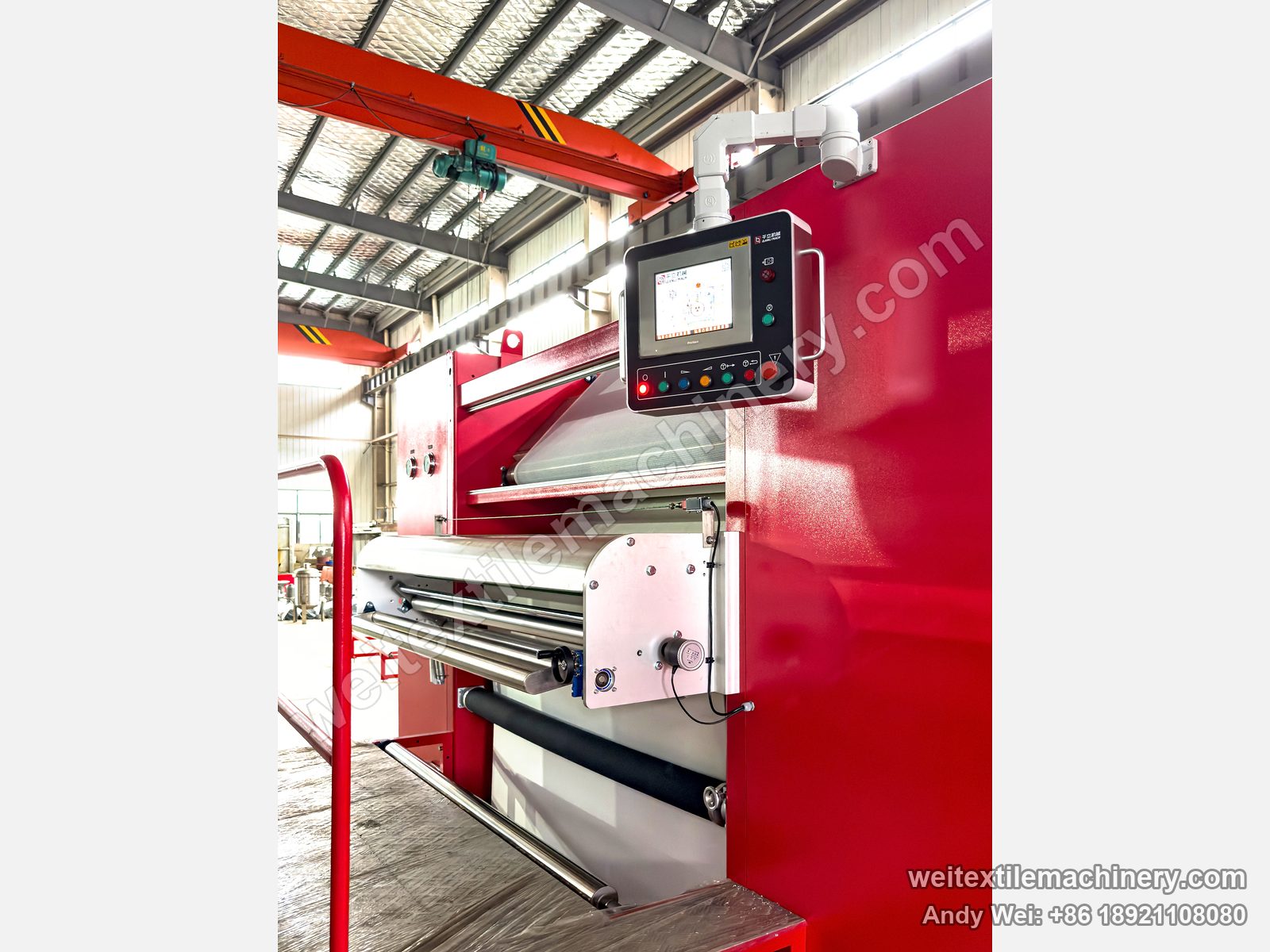

- Multi-function touchscreen + PLC Smart Control System — heating and cooling cycles, proportional steam-valve modulation, twin-inverter cooling-suction control, and energy monitoring unified in a single interface. Simplified operation, streamlined maintenance.
Product overview
The WPF-LXZN represents a new-generation evolution of the continuous decatizing process, engineered for the era of full-width uniformity. Equipped with QL’s proprietary Decatizing Uniformity Technology, the machine can be flexibly deployed at multiple positions on the wool finishing line — operating as a standalone continuous decatizing finisher, as a pre-treatment stage prior to batch (kier) decatizing, or as a post-treatment stage following it. The technology fundamentally eliminates the long-standing issues of left-centre-right shading, head-to-tail piece variation, and batch-to-batch inconsistency that have defined continuous decatizing.
Engineered for the multi-product mill — worsted, carded, silk, and synthetic-blend fabrics, woven and knitted — covered on a single platform across the full finishing portfolio. For fringed scarves, shawls, and similar continuous-decatizing-only categories, this machine is the sole viable process route — batch (kier) decatizing equipment cannot process them.
Applications
Key specifications
| Working width | 1,700 mm |
|---|---|
| Felt sleeve width | 1,950 mm |
| Decatizing drum diameter | 1,270 mm |
| Operating speed | 10 – 35 m/min |
| Installed power | 45 kW |
| Average steam consumption (4–5 bar) | 400 – 500 kg/h |
| Compressed air consumption (7–8 bar) | 100 NL/h |
| Average noise level | <80 dB(A) |
| Dimensions (L × W × H) | 4,900 × 4,200 × 3,300 mm |
Optional features
- Fabric humidifying unit — enhances steam penetration depth, delivering a stronger setting and fuller hand
Full configuration notes, the complete feature list and selection advice — put together for your line and sent straight to you.
Request the full technical fileAll technical parameters stated in this document are measured under ideal operating conditions; actual performance may vary with fabric characteristics, process settings and on-site conditions. The manufacturer reserves the right to introduce technical improvements without prior notice.
Other machines for the same station
This station can be done in more than one way. Each suits a different case — choose by your fabric and output.
Pre-owned machines for this station
Pre-owned European machines for the same station — fully rebuilt to order, and upgraded if you wish.
Sperotto Rimar Multidecat 2.0 Continuous decatizing machine
Continuous decatizing machine
2 unit(s) · Italy
Pre-owned →Sperotto Rimar MD-M Continuous decatizing machine
Continuous decatizing machine · 1.7 m
2 unit(s) · Italy
Pre-owned →Bisio Vapodec Continuous decatizing machine
Continuous decatizing machine · 1.7 m
3 unit(s) · Italy
Pre-owned →Common problems in dry finishing
Real questions from the mill floor — and how we answer them.
Steam contact is short in a continuous machine — does it really set as well as an old batch decatizer?
The steam-rise chamber is enlarged, which extends steam dwell time and substantially enhances the setting effect. A heating bank inside the chamber builds temperature in stages to prevent condensation, and downstream a twin heating-bank drying structure rapidly dries surface condensate and delivers continuous setting. Where deeper penetration is wanted, a fabric humidifying unit is available as an option.
Where do shade variation across the width and end-to-end variation come from, and why is a continuous machine prone to them?
One identifiable cause is condensation: condensate dripping from the steam-rise chamber onto the cloth leaves localised water marks and shade variation. Here the heating bank sits inside the chamber itself, building temperature in stages to prevent that. QL's proprietary Decatizing Uniformity Technology then holds decatizing depth uniform across the full fabric width and keeps bulk production consistent from batch to batch.
Where should decatizing sit in the finishing sequence, and can that be changed?
It can be changed. The machine runs as a standalone continuous decatizing finisher, as a pre-treatment stage before batch (kier) decatizing, or as a post-treatment stage after it — the latter to remove excess lustre and give a softer, fuller hand. It can also be line-integrated with QL pre-shrinking machines to form a flexible continuous-finishing line.
Can silk, man-made fibres and elastane fabrics run on this machine?
Pure silk and silk blends, and polyester / viscose / polyester-viscose blends, are within the machine's scope, covered on the same platform as worsted and carded fabrics. Where stretch is the concern, it comes down to tension: counter-pressure light-tension feed minimises fabric stretch on entry and preserves the original elastic recovery, and ultra-low-tension delivery control is particularly effective on knitted fabrics.
