Four-Channel Wool Scouring and Milling Machine
WPF-4XS
Four independent processing channels — milling and scouring integrated on a single platform. Available with rubber or solid wood rollers.

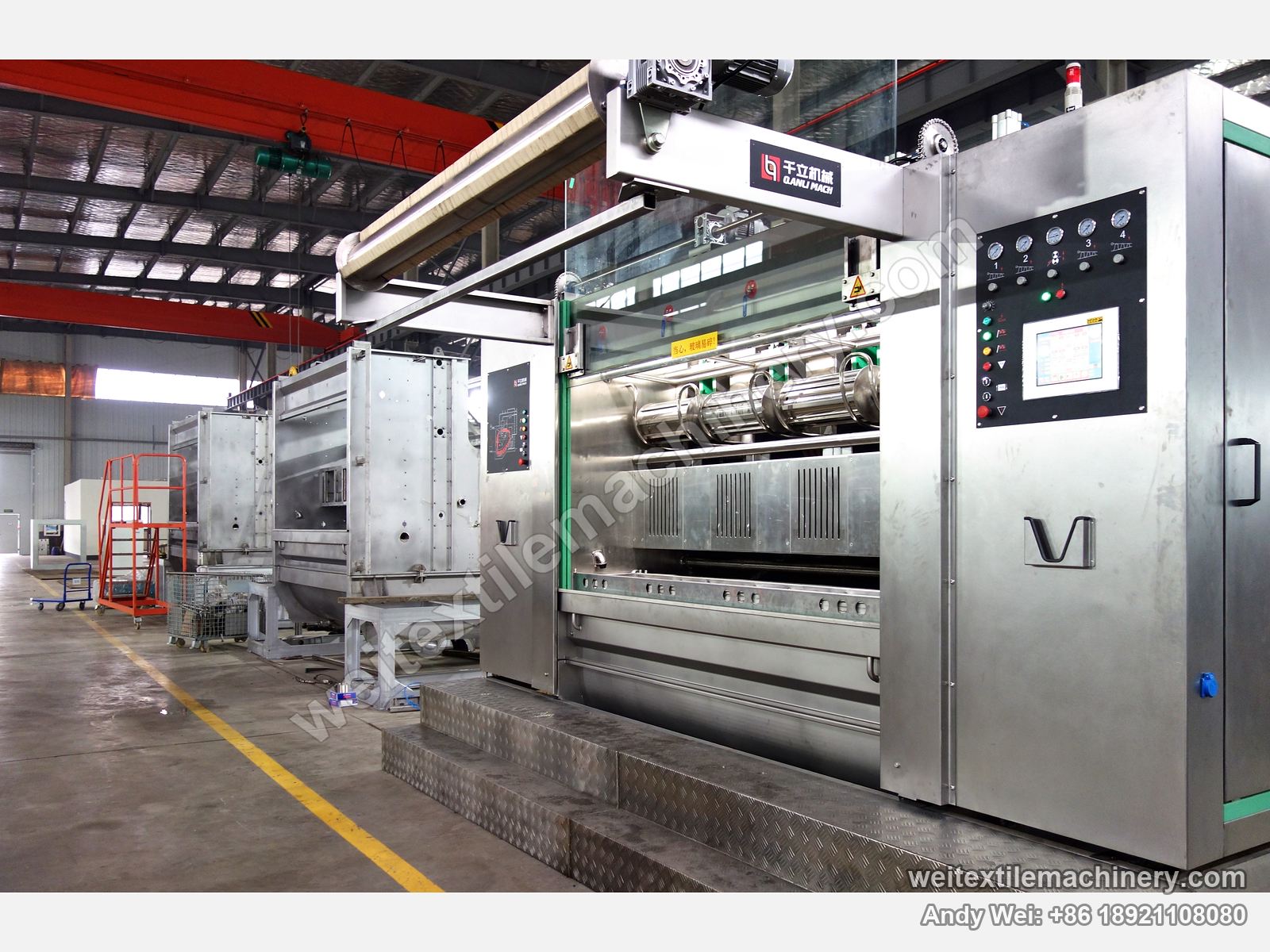

The machine, up close

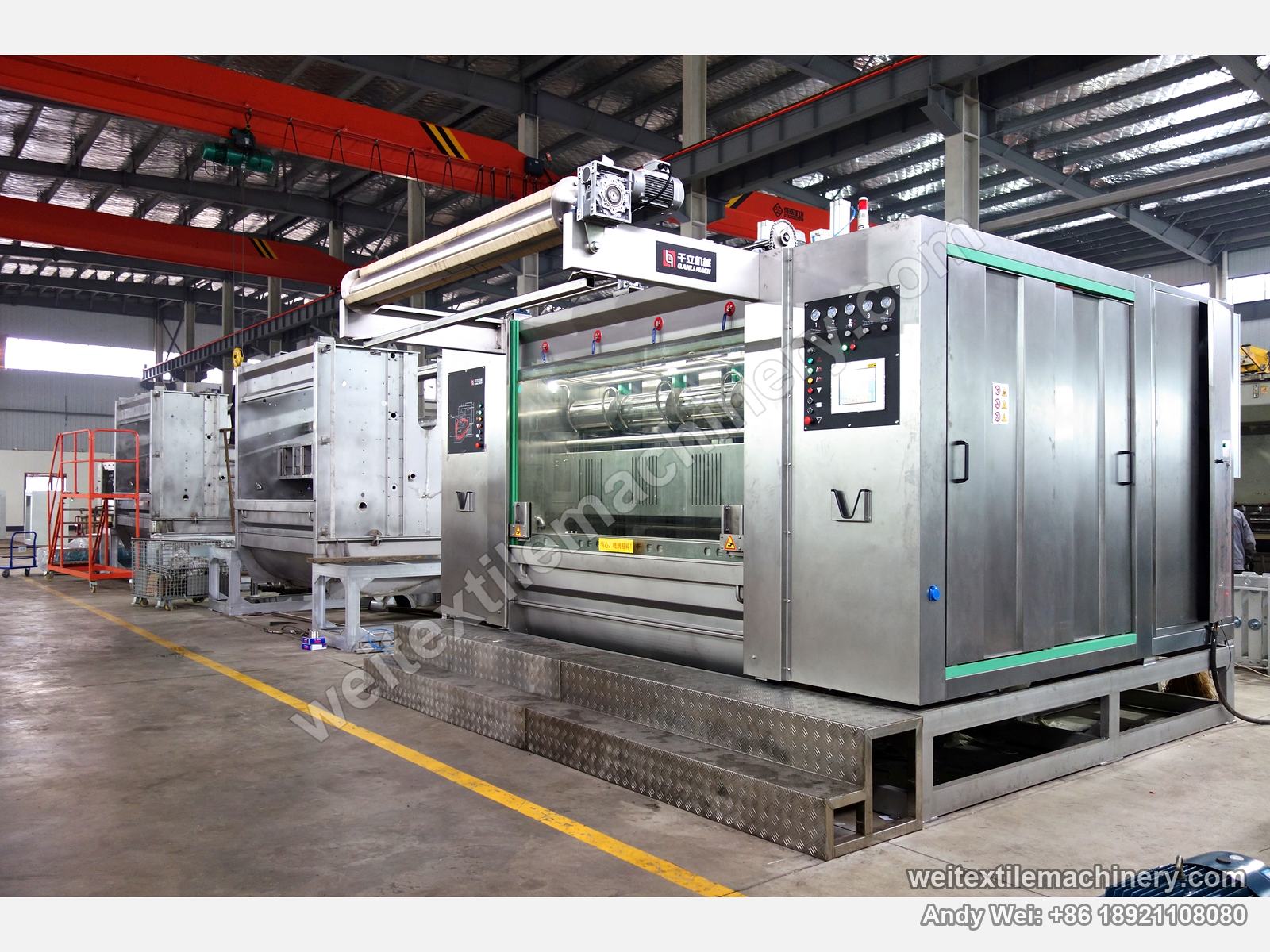

Front view, rollers visible through the window
Key advantages
- Four independent processing channels — 4 fabric slots, 4 milling rollers, 4 milling chambers, 4 pressure plates
- Stainless-steel channel separators — preventing fabric entanglement, ensuring continuous and uniform recirculation; allowing fabrics of different colour and weight to be processed in parallel
- Independent, fully automatic slot adjustment — each channel's fabric slot set individually, with no manual intervention
- Crescent-shaped guide plates — 6 pairs between each roller pair, precisely interfacing with the milling-chamber pressure plate and base edge to prevent static-induced entanglement, fabric tearing, and perforation
Fabric results (before / after)
Threading diagrams
QL High-Efficiency Scouring System
- Constant-pressure feed — a constant-pressure pump pressurises cold water before delivery to the heat-exchange unit
- Fan-atomising spray — specialised fan-atomising nozzles distribute the heated water as a uniform mist across the fabric surface
- High-efficiency operation — versus conventional systems, 40% less water consumed, 50% shorter cycle time
- Intelligent dosing system — dosing volumes controlled automatically, one-touch switching between scouring and milling auxiliaries, auxiliary consumption reduced by 50%
Product overview
The WPF-4XS represents a new generation of the four-channel independent milling and scouring platform. Engineered with channel-by-channel control, the machine consolidates precision milling, scouring, and high-speed scouring (light milling) into a single integrated platform. Stainless-steel separators isolate each of the four channels — four fabrics differing in colour and weight can be processed simultaneously, free of entanglement.
Engineered for the multi-product mill: light worsted and heavy carded fabrics processed in parallel on the same machine.
Two configurations
Applications
Key specifications
| WPF-4XS-R · rubber roller | WPF-4XS-W · solid wood roller | |
|---|---|---|
| Operating modes | Precision milling / Scouring / High-speed scouring (light milling) | |
| Number of channels | 4 (independently controlled) | |
| Fabric speed | 0 – 400 m/min | 0 – 250 m/min |
| Fabric slot width | 40 – 180 mm | 40 – 220 mm |
| Loading capacity | 200 kg / channel · 800 kg total (dry) | |
| Chemical dosing tanks | 520 L + 310 L | |
| Installed power | 80 kW | |
| Dimensions (H × W × L) | 3,340 × 4,242 × 5,113 mm | |
| Weight | ≈ 9.5 T | |
Note on configuration differences: the wood roller configuration is engineered for heavy carded fabrics — the lower fabric speed matches the torque and compression dwell required for heavyweight constructions; the wider fabric-slot range (up to 220 mm) accommodates their greater volumetric profile. All other parameters are identical between the two configurations.
Optional features
- 12-segment grooved milling rollers
- Steam proportional valve with indirect heating — direct heating standard; indirect heating delivers more uniform temperature, lower noise and vibration, and faster heat-up
- Speed-detection system with single-channel auto-stop — individual milling-rate targets per channel; channels reaching their target stop automatically while the others continue
Full configuration notes, the complete feature list and selection advice — put together for your line and sent straight to you.
Request the full technical fileAll technical parameters stated here are measured under ideal operating conditions; actual performance may vary with fabric characteristics, process settings and on-site conditions. We reserve the right to introduce technical improvements without prior notice.
