Wet Brushing and Setting Machine
WPF-SSMDX
Wet Brushing and Setting Machine · Engineered with the QL Twin-Zone Wet Brushing System

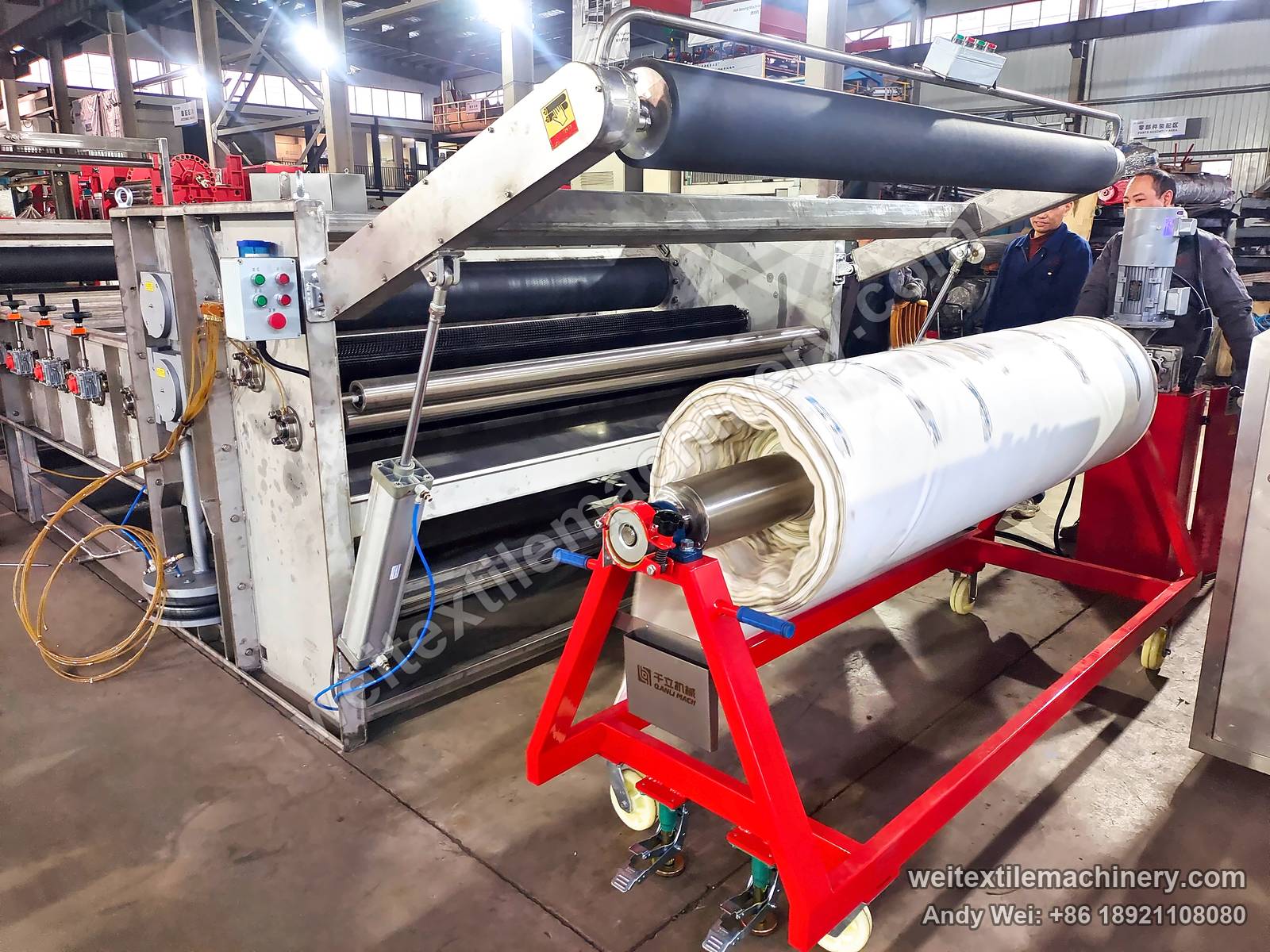

The machine, up close

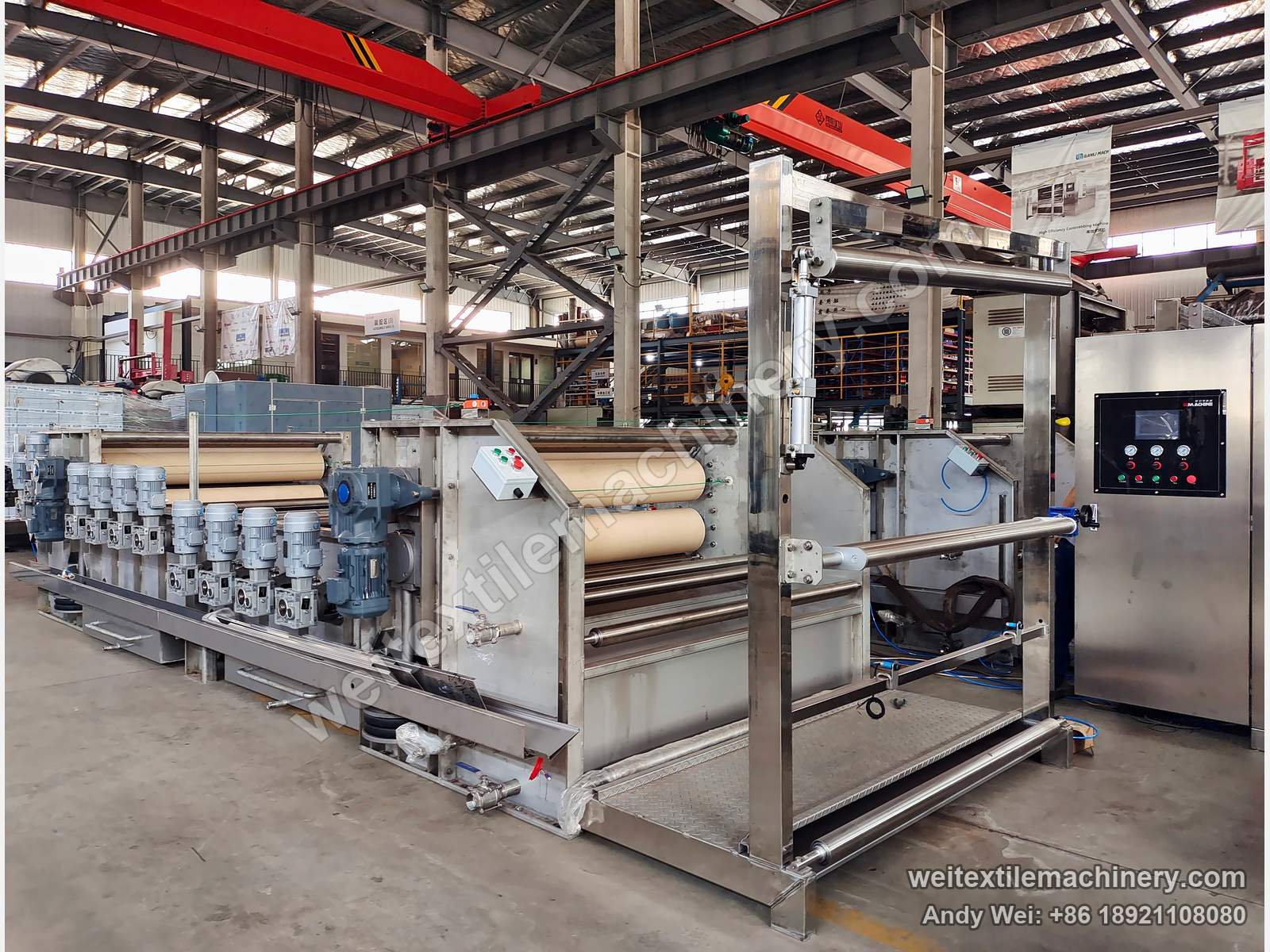

Full view
Key advantages
- QL Twin-Zone Wet Brushing System — four brushes in the lower zone and four in the upper; the fabric passes once and is brushed on one side, then on the other — double-face cloths finished in a single pass
- Delivery Cleaning Brushes · Fibre Collection — after the delivery squeezer, one high-speed cleaning brush above and one below clear loose fibre from the fabric before winding; fibre brushed off by the lower brushes falls into collecting drawers that pull out for emptying
- Heavy-Duty Squeezers at Entry and Delivery — the entry squeezer removes surplus water and auxiliaries and returns the liquor to the trough; the delivery squeezer sets the wet pick-up. Air-spring loading, adjustable pressure
- Direct-Coupled Brushes · Individual Inverter Drives — every brush has its own inverter-controlled motor on a direct coupling; speed is set brush by brush, and each brush can be switched on or off
Fabric results (before / after)

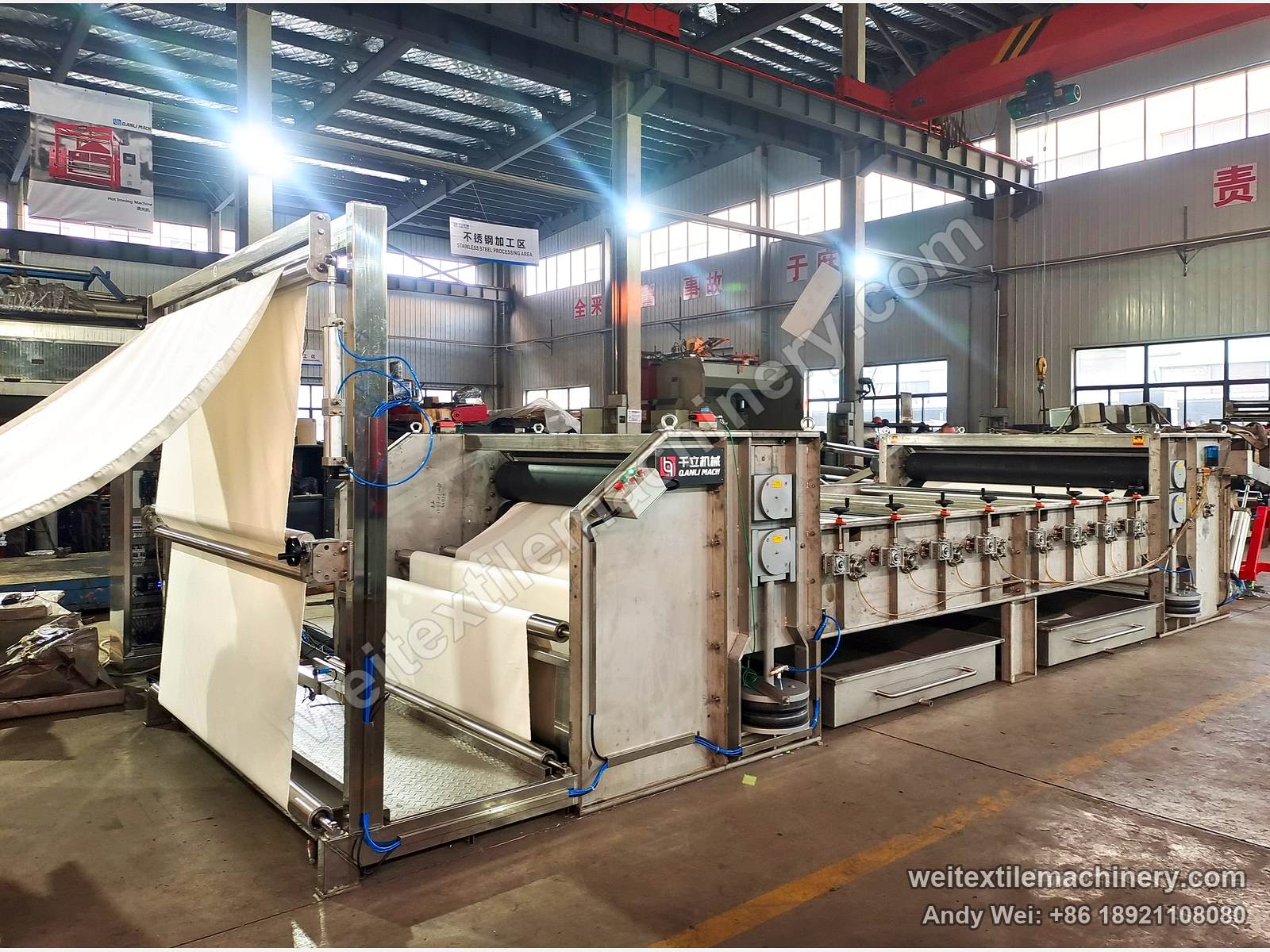

Threading diagrams
QL Twin-Zone Wet Brushing System
- Lower Zone First, Upper Zone Second, Four Brushes Each — the fabric is brushed on its underside in the lower zone, then on its upper side in the upper zone; face and back each pass four brushes
- One Squeezer Before, One After — surplus water and auxiliaries are squeezed out ahead of the brushes; the fabric is squeezed again after brushing and then wound
- Set Brush by Brush — speed, brush distance and on/off are set separately for every brush
Product overview
After impregnation and squeezing, the fabric runs over four lower brushes and then under four upper brushes — in a single pass, the WPF-SSMDX brushes and lays the pile on face and back while the fabric is wet. On double-face cloths each side passes four brushes, and the piece is finished in one pass.
All eight brushes are driven individually, each with its own speed and brush distance; one heavy-duty squeezer stands ahead of the brushing zones and one after them. Loose fibre from the lower brushes drops into collecting drawers, and two high-speed cleaning brushes clear the fabric surface once more before winding.
For woollen pile fabrics in wool, cashmere and their blends — chiefly double-face cloths and overcoatings with a laid pile. The machine works after crabbing and before drying, in combination with teasel raising.
Applications
Key specifications
| Roller face width | 1,800 mm |
|---|---|
| Maximum working width | 1,600 mm |
| Fabric speed | 0–24 m/min |
| Brush arrangement | 4 upper + 4 lower brushes; 2 delivery cleaning brushes |
| Brush speed | 0–325 rpm |
| Maximum roll diameter | 1,000 mm |
| Compressed-air supply | ≥ 4 bar |
| Installed power | 28 kW |
| Overall dimensions (L × W × H) | 8,747 × 2,505 × 2,283 mm |
Optional features
- Roller Face Width 2,200 mm — for fabrics 2,000 mm wide
- Brush Arrangement — other numbers of upper and lower brushes, combined to suit the qualities processed
- Plaiter Delivery — the fabric is plaited down by a swinging arm instead of being wound
- A-Frame Drive Unit — one drive unit turns five A-frames, so the wet rolls keep rotating while they are stored
- Suction Hoods over the Upper Brushes — draw off loose fibre; the fan is supplied by the customer
- Inlet Frame with Automatic Fabric Guiding — replaces the plain inlet frame
Full configuration notes, the complete feature list and selection advice — put together for your line and sent straight to you.
Request the full technical fileAll technical parameters stated in this document are measured under ideal operating conditions; actual performance may vary with fabric characteristics, process settings and on-site conditions. The manufacturer reserves the right to introduce technical improvements without prior notice.
